1974  K3 Orange CT70 Engine
Before
Engine # CT70E-2314109
Chain Cover Removed
Cylinder Removed
Clutch Removed

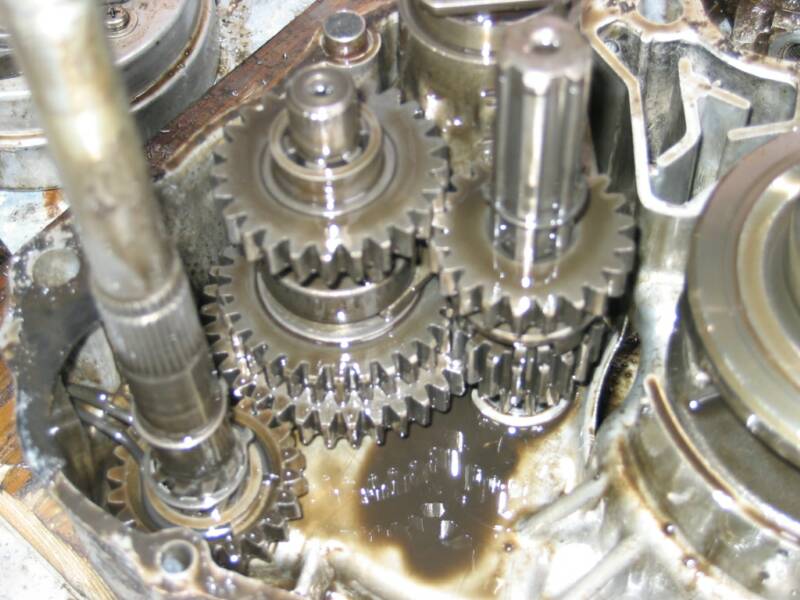

Closeup of Tranny
Top Half
Closeup of Magneto
R. Engine Cover Removed
Shift Mechanism
Right Side of Head
Neutral Switch
Closeup of Clutch
Cam Chain Removed
Rear of Engine
Head Removed
Drive Gear
Cases Split Right Side
Complete Engine rebuild. Overbored Cylinder, New Piston & Rings, Valves, Cam Chain, Magneto, Clutch Plates, Oil Pump Gear, and many other parts/hardware.
Stay tuned for updates. I will post more pictures as the project moves along. This engine is third in line to be rebuilt
Tell a friend about this page
Add this page to your favorites.
After
Cleaned Parts
Kickstart Shaft
Left Side Case
Center Case Gasket
Crankshaft Installed
Transmission
Gear Shift Installed
Oil pump and new Gasket
